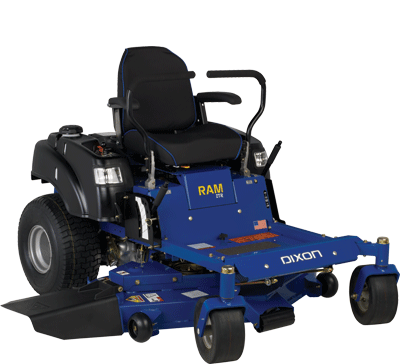

Ram 48" ZT Zero-Turn Ride-on Mower
The perfect combination of value and performance.
Ram is a residential zero turn mower that offers the perfect balance of value and performance. Comfortable padded seats, convenient control placement, premium high powered V-twin engines and rugged steel frames and decks combine to make it a favorite in the Dixon line-up.
Features
- The fully serviceable ZT-2800 series transmissions feature 7" fans for uniform cooling, 1" diameter ball bearing supported axles, and guarded filters. Standard charge pumps offer quiet operation and extended durability.
- Dual wide angle headlights and hour meter are standard equipment.
- Standard Fusion™ cutting blades stay sharp longer and are far more durable than ordinary blades.
- The perfect balance of performance and durability, Dixon’s Tri-Force extra deep welded steel cutting deck offers an exceptional cut quality, whether mulching, bagging or discharging.
- Comfortable foam padded steering levers, height adjustment control, park brake and fender mounted controls are all conveniently located within easy reach of the operator.
- Durable ballistic cloth construction and deep seat cushions provide one of the most comfortable rides on the market.
- Large 20" drive tires provide a more comfortable ride.
Standard Accessories
- Arm rest kit.
- Headlight kit.
Optional Accessories
- Collection system (3 Bag - 9 Bushel).
- Mulch kit.
- Mower cover.
The perfect balance of performance and durability, Dixon's TriForce extra deep welded steel cutting deck offers an exceptional cut quality, whether mulching, bagging or discharging.
(Available on 42" model only).
| MODEL | Ram 48 ZT |
|---|---|
| Engine | |
| Engine manufacturer | Kohler Courage |
| Power/HP-Cylinder | 24 HP Twin |
| Air filter type | Standard |
| Fuel Capacity | 13 litres |
| Cutting Deck | |
| Cutting Width | 48" |
| Cutting Height (min-max) | 1.5 - 4.5" |
| Anti-Scalp Wheels | 3 |
| Cutting Deck Construction | Fabricated flat 11 gauge |
| Spindle/mandrel type | Aluminum- regular |
| Blades | 3 |
| Blade Engagement | Electric clutch |
| Blade-tip speed | 16600 fpm |
| Drive System | |
| Transmission type | Hydrostatic |
| Transmission model | ZT2800 |
| Pump displacement | 10cc |
| Forward speed | 10.5 km/hr |
| Tire size, front (in.) | 11 x 5 - 5 |
| Tire size, rear (in.) | 20 x 8 - 8 |
| Equipment | |
| Hour Meter | Digital |
| Adjustable Sliding Seat | Nylon fabric with arm rests |
| Seat springs | Standard |
| Weight | 291 kg |
| Base length | 190 cm |
| Width (chute down) | 152 cm |
| Width (chute up) | 124 cm |
| Height | 120 cm |
| Productivity (at 80% efficiency) | |
| Productivity | 2.5 Acres/hr. |
| Warranty (See dealer for more details) | |
| Warranty For full warranty details, refer to your Dixon Operator Manual |
Residential 3 year limited Commercial 1 year limited |
| Accessories | |
| Collection System | 3 Bag - 9 Bushel |
| Mulch Kit | Optional |
| Headlight Kit | Standard |
| Arm Rest Kit | Standard |
| Mower cover | Optional |
| ROPS - Roll Over Protection System | Not available |
* Continuous dedication to improve products requires that specifications and designs are subject to change without notice.
