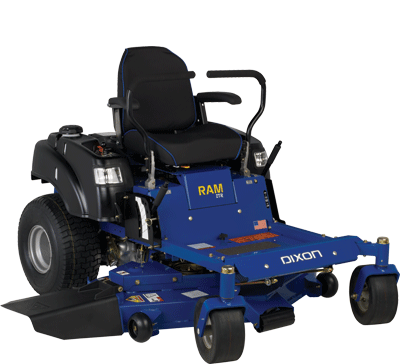

Ram 48" ZT Zero-Turn Ride-on Mower

Ram 48 ZT

The perfect combination of value and performance.

Ram is a residential zero turn mower that offers the perfect balance of value and performance. Comfortable padded seats, convenient control placement, premium high powered V-twin engines and rugged steel frames and decks combine to make it a favorite in the Dixon line-up.


  • The fully serviceable ZT-2800 series transmissions feature 7" fans for uniform cooling, 1" diameter ball bearing supported axles, and guarded filters. Standard charge pumps offer quiet operation and extended durability.
  • Dual wide angle headlights and hour meter are standard equipment.
  • Standard Fusion™ cutting blades stay sharp longer and are far more durable than ordinary blades.
  • The perfect balance of performance and durability, Dixon’s Tri-Force extra deep welded steel cutting deck offers an exceptional cut quality, whether mulching, bagging or discharging.
  • Comfortable foam padded steering levers, height adjustment control, park brake and fender mounted controls are all conveniently located within easy reach of the operator.
  • Durable ballistic cloth construction and deep seat cushions provide one of the most comfortable rides on the market.
  • Large 20" drive tires provide a more comfortable ride.

Standard Accessories

  • Arm rest kit.
  • Headlight kit.

Optional Accessories

  • Collection system (3 Bag - 9 Bushel).
  • Mulch kit.
  • Mower cover.

The perfect balance of performance and durability, Dixon's TriForce extra deep welded steel cutting deck offers an exceptional cut quality, whether mulching, bagging or discharging.
(Available on 42" model only).

Engine manufacturer Kohler Courage
Power/HP-Cylinder 24 HP Twin
Air filter type Standard
Fuel Capacity 13 litres
Cutting Deck
Cutting Width 48"
Cutting Height (min-max) 1.5 - 4.5"
Anti-Scalp Wheels 3
Cutting Deck Construction Fabricated flat 11 gauge
Spindle/mandrel type Aluminum- regular
Blades 3
Blade Engagement Electric clutch
Blade-tip speed 16600 fpm
Drive System
Transmission type Hydrostatic
Transmission model ZT2800
Pump displacement 10cc
Forward speed 10.5 km/hr
Tire size, front (in.) 11 x 5 - 5
Tire size, rear (in.) 20 x 8 - 8
Hour Meter Digital
Adjustable Sliding Seat Nylon fabric with arm rests
Seat springs Standard
Weight 291 kg
Base length 190 cm
Width (chute down) 152 cm
Width (chute up) 124 cm
Height 120 cm
Productivity (at 80% efficiency)
Productivity 2.5 Acres/hr.
Warranty (See dealer for more details)
For full warranty details,
refer to your Dixon Operator Manual
Residential 3 year limited
Commercial 1 year limited
Collection System 3 Bag - 9 Bushel
Mulch Kit Optional
Headlight Kit Standard
Arm Rest Kit Standard
Mower cover Optional
ROPS - Roll Over Protection System Not available

* Continuous dedication to improve products requires that specifications and designs are subject to change without notice.
